AED 1,495.00

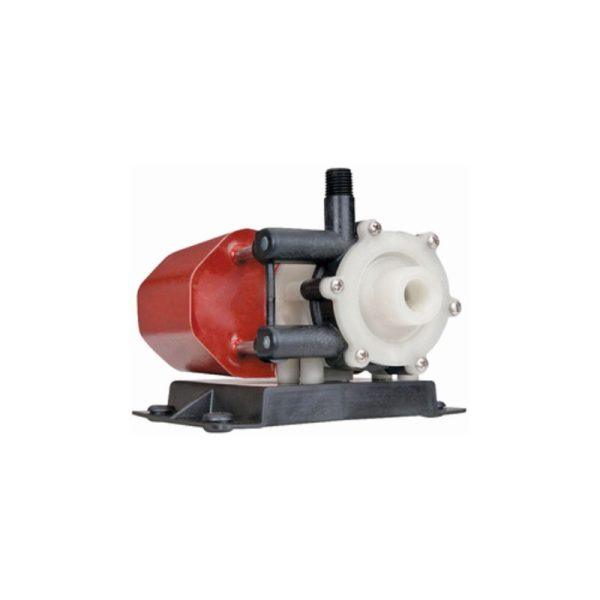

MARCH PUMP MA LC-2CP-MD is an American submersible seal-less centrifugal magnetic drive pump. 115V – 50/60 Hz – 5GPM (300 GPH) It might be used submerged or not submerged. 3/8″ FPT and 3/4″ MPT Inlet, 1/4″ MPT Outlet. Commonly used for marine air conditioning and fountains.
March Pump Part Number: LC-2CP-MD
Replaces Dometic Part Number: 225500004 / 334050 – PML250 115V
MARCH PUMP LC-2CP-MD Mag-Drive Centrifugal Pump 115V
The LC-2CP-MD is centrifugal magnetic drive pumps, eliminating the need for a shaft seal. Pumps can be serviced with a screwdriver. The “LC” model is hermetically encapsulated allowing the pump to run fully submerged or in open air for complete moisture protection. See the parts list for a breakdown of parts. BC models have an encapsulated impeller magnet. Direct replacement for Dometic PML250 – 115V Part Number: 225500004, 334040, 334050
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.
Pumps are U.L. Recognized under File No. E80954. U.L. Recognition On Pumps Is For Water Only.
Models LC-2CP-MD 115 V & 230 V have a 6 ft (1.8 m) cord.
Inlet – Outlet: 3/8” FPT & 3/4” MPT – 1/4” MPT
Max Internal Pressure: 25 psi (172 kPa)
Max Liquid Temperature: 130 °F (54 °C)
Dimensions (inches): 4.13 x 4.87 x 6.11
Packed Weight (lbs): 5.20
Climax Marine Services specializes in supply of different Brands and types of Marine Sea Water Pump that are used in various applications. We carry a wide range of Sea water pumps such as March Pump,K2, Scot Pump, Oberdorfer, Calpeda etc. We have also Fresh/Chill water pumps, Condensation Pump, Macerator Pump & Pump Mechanical Seal. Find your next Marine Sea Water Pump online with us and delivered to your door step in Dubai, Oman, Qatar, Bahrain, Saudia Arabia and Kuwait.
March Pumps – LC-2CP-MD 115V, Submersible and Open Air Magnetic Drive Pump – 0125-0057-0200
| Manufacturer Part Number | LC-2CP-MD 115V |
| Max Flow 60Hz | 5GPM |
| Max Head 60Hz | 13 Feet |
| Max Flow 50Hz | 18.5LPM |
| Max Head 50Hz | 2.7M |
| Electrical & Voltage | 115V 50/60Hz |
| Inlet | 3/8″FPT & 3/4″MPT |
| Outlet | 1/4″MPT |
| Max Water Temperature | 130F |
| Max Internal Pressure | 25PSI |
| Self Priming | No |
| Wet End | Polypropylene Front and Rear Housing, Impeller |
| Specialty | General |
