Description

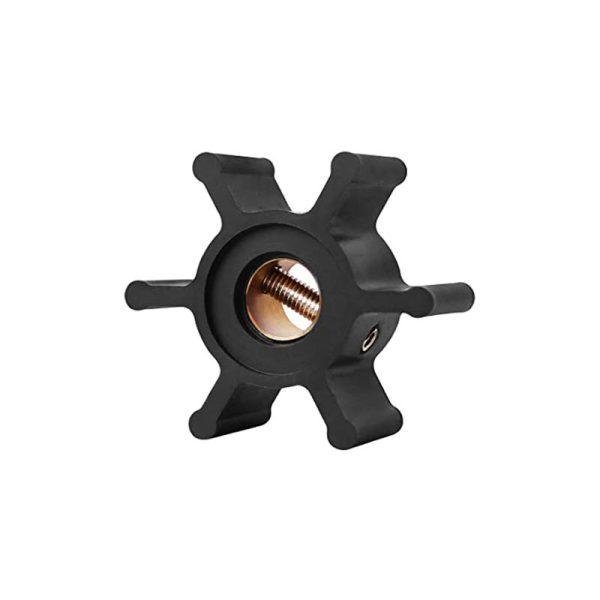

I-143 RUBBER IMPELLER
I-143 Rubber Impeller is the perfect replacement for the following brands of rubber impellers,
OEM REPLACEMENTS
| JABSCO |
673-0001,673-0003,18673-003-P |
|
|
|
| CEF |
500116,500216. |
|
|
|
| JMP |
7051-01 |
|
|
|
| JOHNSON |
09-1026B,09-1026B-9 |
|
|
|
| VOLVO |
804696,875808-8,3593659,21951344,22222936,3593658 |
|
|
|
| DJ PUMP |
09-108-0601 |
|
|
|
| PERKINS |
24880194 |
|
|
|
| SIERRA |
18-3080, 18-3036 |
|
|
|
| GLM |
89520 |
|
|
|
| MALLORY MARINE |
9-45702 |
|
|
|
IMPELLER DIMENSIONS
| Â WIDTH |
51MM |
| NO: OF BLADES |
6 |
| HEIGHT |
22MM |
| INSERT TYPE |
Slotted Shaft Pin Drive |
|
|
| MATERIAL |
NEOPRINE |
IMPELLER REPLACEMENT – THE BASICS
- Use impellers made of neoprene for the cooling of the engine and for the transfer of fresh water or salt water. The most widely used material is neoprene. It is suitable for applications where there is little oil or diesel in the tank.
- Nitrile impellers are used for bilge pumping and transfer duties when the water is highly contaminated (e.g. oil or diesel).
- Depending on the engine duty, replace all impellers at least once a year, if not sooner. An impeller can endure for several years if installed correctly, but it’s always best to follow a preventative maintenance routine rather than a remedial one.
- Impeller replacement is simple. The impeller can be taken out by unscrewing the end cover screws and then gripping the impeller hub with channel lock pliers or a Impeller Removal Tool. Screwdrivers should not be used since they can be dangerous in small locations and can damage the pump body’s face, leading to leaks.
- Keep extra impellers on board at all times in case of emergencies. The engine cooling system’s impeller is among its most important parts, and it should always be handled as such.
Brand
Cef
DJ Pump
Farryman
Fischer Panda
GLM
Jabsco
Jmp
Johnson
Climax Marine supplies Johnson impellers and engine cooling parts for boats and yachts across the UAE and GCC. Our range includes outboard impellers such as O-117, O-119, O-155, O-1051, P-125, P-1309, Q-312, J-921, J-6301 and J-9001, along with marine flexible impellers I-143, I-201A, I-201B and H-157 for engine and generator cooling pumps.
We also stock KMP engine cooling pumps for complete replacement. Most impellers are in stock for fast delivery, as a worn impeller can quickly lead to engine overheating. Send us your engine model or old part number and our team will help you find the right Johnson impellers, with delivery across the UAE and GCC.
Mallory Marine
Climax Marine supplies Mallory Marine impellers for outboard engines and inboard cooling pumps across the UAE and GCC. Our range includes outboard impellers such as J-345, J-1611, J-3023, J-6301, J-9001, O-117, O-119, O-155, O-1051, P-125, P-149, P-890, P-1309 and Q-312, plus flexible impellers I-143 and H-129.
A worn impeller can quickly cause your engine to overheat, so we keep most sizes in stock for fast replacement. Send us your engine model or old part number and our team will help you find the right Mallory Marine impellers, with delivery across the UAE and GCC.
Perkins
Sierra
Volvo
Climax Marine supplies Volvo Penta impellers and cooling pump parts for marine engines and generators across the UAE and GCC. Our range includes flexible impellers such as I-143, I-201A, I-201B, I-7072S, K-112N, K-114 and K-1140, plus complete impeller kits with gaskets and O-rings, including J-131, J-203B, K-134, K-135, K-176 and the I-143 kit.
We also stock KMP-134ZX and KMP 134 engine cooling pumps for full replacement. Regular impeller changes help prevent engine overheating, so we keep most sizes ready for fast delivery. Send us your engine model or old part number and our team will help you find the right Volvo Penta impellers, with delivery across the UAE and GCC.
IMPELLER FEATURES
| IMPELLER WIDTH |
51MM |
| NO: OF BLADES |
6 |
| IMPELLER HEIGHT |
22MM |
| INSERT TYPE |
9.5MM |
| IMPELLER HEIGHT |
Slotted Shaft Pin Drive |
| MATERIAL |
NEOPRINE |
- JPR-VP0010DA(Volvo Penta Replacement Sea/Raw Water Engine Cooling Pump – Without Gear)
For Volvo Penta D1 Series Engine Models: D1-13A/B/F, D1-20A/B/F
Compatible to Genuine: YES
- JPR-VP0010DB(Volvo Penta Replacement Sea/Raw Water Engine Cooling Pump – Without Gear)
For Volvo Penta D1/D2 Series Engine Models: D1-30A/B/F, D2-40A/B/F
Compatible to Genuine: YES
- Flexible Rubber Impellers for Farymann Diesel Engines CS / P30M / P30H / Q30M / Q30H /R30M / R30H /S30M /S30H
