3 phase B-C 41/1E 50Hz Calpeda 1HP

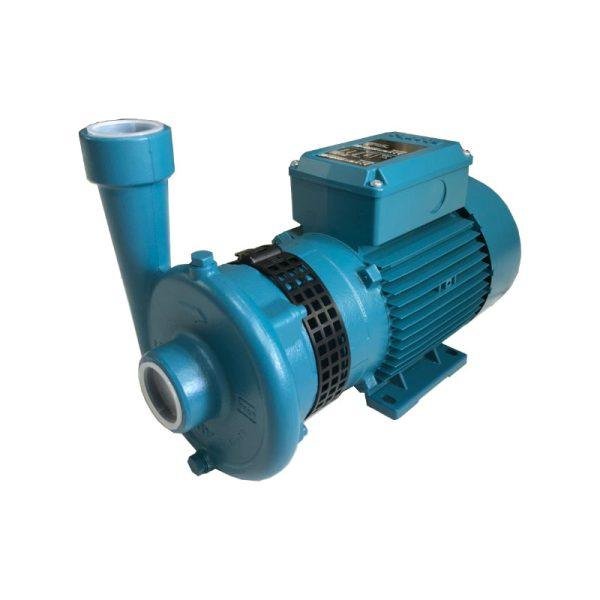

Calpeda pump B-CM 41/1E
Calpeda pump B-CM 41/1E
3 phase B-C 41/1E 50Hz Calpeda 1HP - Image 2

3 phase B-C 41/1E 50Hz Calpeda 1HP

AED 6,600.00

Availability: 2 in stock Categories , , , , ,
Add to Wishlist
Add to Wishlist
GET A QUOTE
Add to Wishlist
Add to Wishlist

Description

Calpeda pump BC-41/1E :

Centrifugal electric pump made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as air conditioning, cooling, circulation etc.

Voltage: 230/400/50 Hz 3ph

Max. Delivery: 250 Lt/min

Max. Head: 19m.

Weight: 18 kg



Execution

  • Close-coupled centrifugal electric pumps with open impeller.
  • Backward (vortex) impeller for type C 16/1E.
  • C: version with cast iron pump body and fitting.
  • B-C: version with bronze pump body and fitting.
  • Bronze pumps are supplied fully painted.

Uses

  • For liquids moderately charged with impure emulsions.
  • For industry and agriculture.

Calpeda pump BC-41/1E – FEATURES

Manufacturer Calpeda
Electrical Supply 380-400V
Flow Rate 250 ltr/min
Max Head 19m
Pump Type Centrifugal Pump
Switch None
Ac Power Three Phase



Pump and Motor Data

n (rpm) 2900 Un (V) 230/400
No of impellers 1 fn (Hz) 50
Max working pressure (bar) 6 Poles 2
H max (m) 19 In (A) 4/2.3
H min (m) 13 PF 0.76
Q min (mc/h) 3.60 Insulation Class F
Q max (mc/h) 15 Duty S1
pn (Kw) 0.75 Minimum liquid temperature (°C) -10.00°C
pn (HP) 1 IE IE3-80.7
Impeller diameter (mm) 117 Weight (kg) 16.772
H max (m) 19 Ingress protection (IP) IP 54
Motor type 1m Motor Phase 3



Additional information

Weight 18 kg
Brand

Calpeda

Brand

calpeda

Climax Marine Services specializes in supply of different Brands and types of Marine Sea Water Pump that are used in various applications. We carry a wide range of Sea water pumps such as Calpeda, March Pump,K2, Scot Pump, Oberdorfer, etc. We have also Fresh/Chill water pumps, Condensation Pump, Macerator Pump & Pump Mechanical Seal. Find your next Marine Sea Water Pump online with us and delivered to your door step in Dubai, Oman, Qatar, Bahrain, Saudia Arabia and Kuwait.

Centrifugal electric pump made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as air conditioning, cooling, circulation etc.
