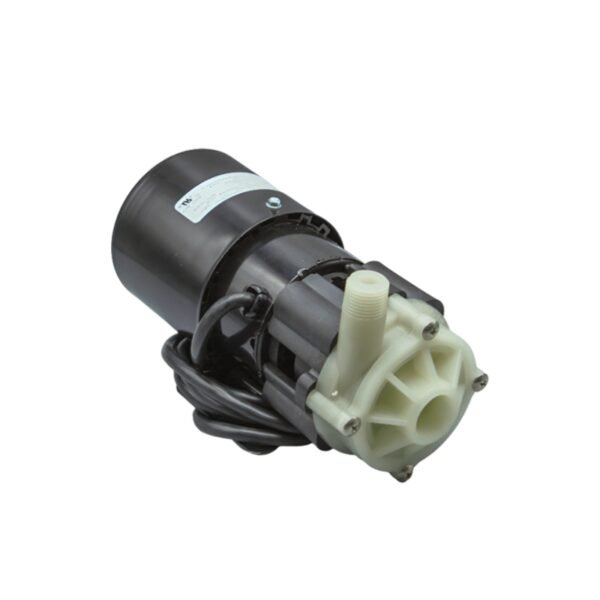

BC-3CP-MD Magnetic Drive Chemical Pump 0130-0018-0300

March
March
BC-3CP-MD Magnetic Drive Chemical Pump 0130-0018-0300 - Image 2

BC-3CP-MD Magnetic Drive Chemical Pump 0130-0018-0300

AED 2,155.00

Availability: 2 in stock Categories , , , , ,
Add to Wishlist
Add to Wishlist
GET A QUOTE
Add to Wishlist
Add to Wishlist

March Pump’s industrial BC-3CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 10 gallons per minute at 1 feet, and its maximum head is 20.5 Feet (9PSI).



Description

BC-3CP-MD Magnetic Drive Pump 0130-0018-0300

Unit 60Hz
System US Metric
Max Flow 10 GPM 37.8 LPM
Max Head 20.5 FT 6.25 M
Power 0.06 HP 0.04 KW



Unit 50Hz
System US Metric
Max Flow 8.7 GPM 33 LPM
Max Head 14.7 FT 4.5 M
Power 0.06 HP 0.04 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4″FPT
Outlet: 1/2″MPT
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87°C
  • Note: Product image may be different than actual product received.

Part Numbers

P/N Pump Description Modified With
0130-0018-0300 BC-3CP-MD 115V Standard
0130-0018-0600 BC-3CP-MD 230V Standard
The below are modified BC-3CP-MD’s
0130-0018-0312 BC-3CP-MD 115V Teflon O-Ring
0130-0018-0612 BC-3CP-MD 230V Teflon O-Ring

Parts Breakdown

Parts Image
Item Part Number Qty Description
0130-0018-0300 1 BC-3CP-MD, 1 Phase, 115V, Complete Standard Pump
0130-0018-0600 1 BC-3CP-MD, 1 Phase ,230V, Complete Standard Pump
1 0823-0008-1000 4 #10-32 x 1-1/2” Long Screw (Stainless)
2 0130-0021-1000 1 Cover with 3/4” FPT Inlet (Polypropylene)
3 0130-0033-1000 1 3/32” CS x 2-13/16” OD Cover “O” Ring (Viton)
4 0130-0028-1000 1 Thrust Washer (Ceramic)
5 0130-0024-1000 1 Shaft (Ceramic)
6 0130-0069-0200 1 Encapsulated Impeller (Polypropylene)
7 0130-0018-1000 1 Rear Housing with 1/2” MPT Outlet (Polypropylene)
8 0130-0043-0200 1 Drive Magnet
9 0130-0066-0100 1 Motor Bracket (Plastic)
10 0618-0027-1000 4 #8-32 x 5/8” Long Screw (Stainless)
11 0140-0014-1000 4 #8 Lock Washer (Steel)
12 0130-0140-1200 1 Motor, 1 Phase, 115V, 50/60 Hz
12 0130-0049-1200 1 Motor, 1 Phase, 230V, 50/60 Hz
WEK 0130-0114-0200 1 Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7)

Options

Options Image
Item Part Number Qty Description
3 0130-0121-1000 1 3/32” CS x 2-13/16” OD “O” Ring (Teflon Encapsulated Viton)
5 0130-0024-1000 1 Shaft (316SS)
0750-1011-1000 1 Stainless Steel Tag w/Customer’s Desired Information (Not Shown)
