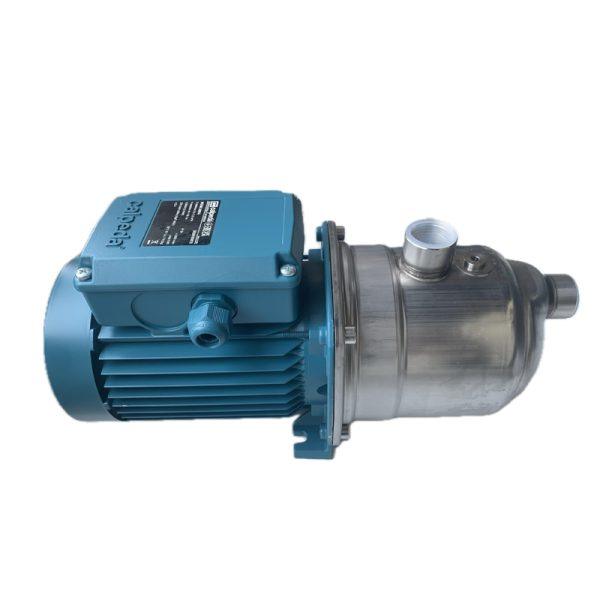

Calpeda NGXM 2/80/A – Stainless Steel Horizontal Multistage Pump

The Calpeda NGXM 2/80/A is a premium-quality horizontal multistage centrifugal pump, designed to deliver high efficiency, reliability, and long service life in demanding applications. Made in Italy by Calpeda, a globally trusted name in pumping solutions, this model is ideal for clean water handling across residential, commercial, and marine environments.

With a power rating of 0.55 kW (0.75 HP), the NGXM 2/80/A pump offers a flow rate range from 0.3 to 3.2 m³/h and a maximum head of 43 meters, making it well-suited for boosting pressure, water supply systems, irrigation, and general liquid transfer applications. Its wide range of performance enables flexibility for various installations, whether for constant pressure water supply in households or circulation systems on yachts and marine vessels.

Built with AISI 304 stainless steel hydraulic components, the NGXM 2/80/A pump ensures corrosion resistance and suitability for slightly aggressive liquids. It features a compact and robust horizontal monobloc design, which includes a closed-coupled motor and pump, ensuring space-saving installation, quiet operation, and minimal vibration.

The motor is asynchronous, two-pole, TEFC (Totally Enclosed Fan-Cooled), with IP54 protection and Class F insulation, ensuring safe and durable performance even in environments with high humidity or occasional water splashes. This makes it a strong contender for both indoor and sheltered outdoor use, especially in marine engine rooms, technical spaces, and water treatment plants.

The mechanical seal is made from high-quality carbon/ceramic materials to ensure long-term, leak-free operation under varying temperature and pressure conditions. Thanks to its self-priming capabilities and precise multistage design, the Calpeda NGXM 2/80/A offers both smooth flow and stable pressure, reducing wear and energy waste.

Key Specifications:

• Power: 0.55 kW (0.75 HP)

• Flow Rate: 0.3 – 3.2 m³/h

• Head: 19.1 – 43 meters

• Enclosure: IP54

• Construction: Stainless steel (AISI 304)

• Application: Pressure boosting, marine systems, water transfer, irrigation

Choose the Calpeda NGXM 2/80/A for performance, durability, and efficiency across your water handling systems—ideal for marine, residential, and industrial operations.
