AED 1,045.00

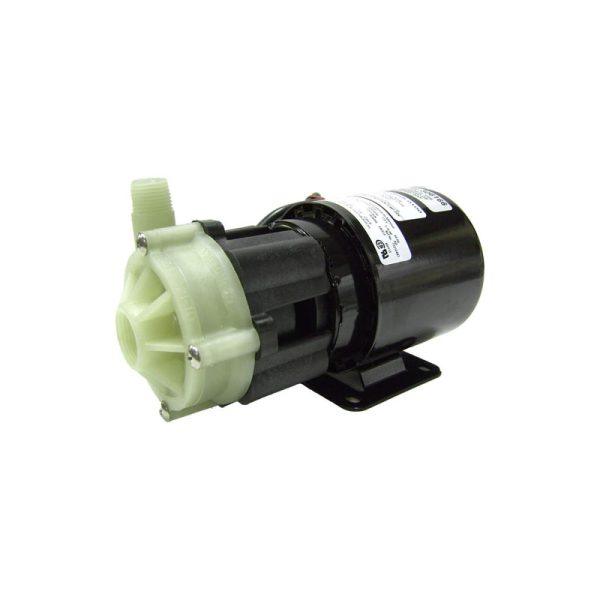

March Pump’s industrial AC-2CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 5 gallons per minute at 2 feet, and its maximum head is 13 Feet (5.5PSI).
| Unit System | 60Hz US | Metric |
|---|---|---|
| Max Flow | 5 GPM | 18.9 LPM |
| Max Head | 13 FT | 4 M |
| Power | 0.025 HP | 0.019 KW |
| 50Hz US | Metric |
| 4.9 GPM | 18.5 LPM |
| 8.9 FT | 2.7 M |
| 0.025 HP | 0.019 KW |
The March Pump AC-2CP-MD Mag Drive Pump is an American-made, seal-less centrifugal magnetic drive pump designed for reliable chemical recirculation and chemical transfer applications. Its magnetic drive design eliminates the need for a traditional shaft seal, helping reduce the risk of leakage and minimizing maintenance requirements when handling demanding fluids.
The AC-2CP-MD is capable of delivering a maximum flow rate of 5 GPM at 2 feet and provides a maximum head of 13 feet (5.5 PSI). This compact chemical transfer pump is suitable for applications involving mildly or highly corrosive chemicals, acids, and solvents, depending on the chemical compatibility of the wetted materials.
The standard wet end is constructed from Polypropylene, Viton, Ceramic, and Ceramic Magnet, providing dependable performance in a wide range of chemical-handling applications. The pump features a 3/8″ female pipe thread inlet and a 1/4″ male pipe thread outlet, making it suitable for compact fluid transfer and circulation systems.
The standard motor configuration is available with a 1-phase 115V, 0.033 HP fan-cooled motor, operating at 50/60 Hz. The pump can also be configured with a 230V, 0.025 HP motor depending on the application and requirements. Performance may vary between 50 Hz and 60 Hz operation.
With a maximum internal pressure of 50 PSI and a maximum liquid temperature of 190°F (87°C), the March AC-2CP-MD is designed for dependable operation in various industrial and chemical-processing environments.
The AC-2CP-MD Mag Drive Pump can be used in a variety of industrial fluid-handling applications, including chemical recirculation systems, chemical transfer, laboratory equipment, process systems, and other applications requiring reliable pumping of compatible corrosive liquids.
Before selecting the pump, it is important to verify chemical compatibility, operating temperature, pressure, flow requirements, and electrical specifications for your specific application. Contact us to confirm whether the March AC-2CP-MD Mag Drive Pump is suitable for your required chemical or fluid-handling system.
Climax Marine Services specializes in supply of different Brands and types of Marine Sea Water Pump that are used in various applications. We carry a wide range of Sea water pumps such as March Pump,K2, Scot Pump, Oberdorfer, Calpeda etc. We have also Fresh/Chill water pumps, Condensation Pump, Macerator Pump & Pump Mechanical Seal. Find your next Marine Sea Water Pump online with us and delivered to your door step in Dubai, Oman, Qatar, Bahrain, Saudia Arabia and Kuwait.
There are many applications that the March AC2CPMD115V are used in. Typical applications for this pump include etching equipment, photographic processing equipment, ice makers, ice flakers, plate processors, and marine air conditioning. The AC2CPMD has pumped has pumped Acetic Acid, Acetone, Ammonium Sulfate, Citric Acid, Ethylene Glycol, Ferric Sulfate, Hydrogen Peroxide, Potassium Hydroxide, Sodium Chloride, Fresh Water, Salt Water, and many more chemicals. Liquids containing ferrous metal fines should not be pumped. This pump may have to be modified to pump liquids or chemicals with specific gravities, viscosities, or elevated temperatures different then ambient water. A magnetic drive pump is sealless, preventing any leakage that is normally associated with a conventional seal pump. Not only does the absence of a seal prevent the leakage of potentially dangerous and expensive liquids, it reduces maintenance time spent on the pump. In any magnetic drive pump, there are only two moving parts, the drive magnet and the impeller. With only two moving parts, there is little to break in the pump, and this pump is serviceable with a screwdriver. The simpler the pump, the less chance there is for failure. A magnetic drive pump is your answer to for a long lasting, dependable, reliable pump. Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
March Pumps – AC-2CP-MD 115V, Open Air Magnetic Drive Pump – 0125-0069-0100
| Manufacturer Part Number | AC-2CP-MD 115V |
| Max Flow 60Hz | 5GPM |
| Max Head 60Hz | 13 Feet |
| Max Flow 50Hz | 18.5LPM |
| Max Head 50Hz | 2.7M |
| Electrical & Voltage | 115V 50/60Hz |
| Inlet | 3/8″FPT & 3/4″MPT |
| Outlet | 1/4″MPT |
| Max Water Temperature | 190F |
| Max Internal Pressure | 50PSI |
| Self Priming | No |
| Wet End | Polypropylene Front and Rear Housing, Impeller |
| Specialty | General |
