AED 1,650.00

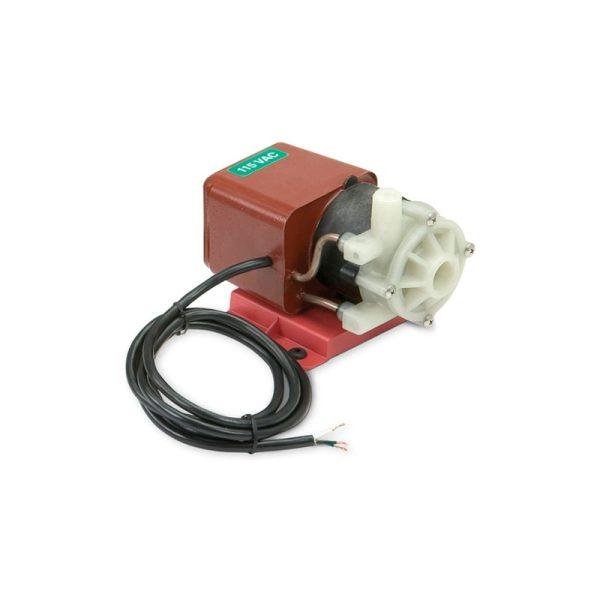

MARCH PUMP LC-3CP-MD – American submersible seal-less centrifugal magnetic drive pump. 115V – 50/60HZ – 8.5GPM (490 GPH). Can be used submerged or not submerged. 3/4″FPT Inlet, 1/2″MPT Outlet. Rated up to 510 GPH (1930 LPH) flow and for heads up to 19 ft (4.3 m). Commonly used for marine air conditioning and fountains. Replacement for Dometic PML500 Pump (part number 225500005, 336183)
MARCH PUMP LC-3CP-MD Mag-Drive Centrifugal Pump 115V / Replaces Dometic PML500 Pump
The March Pump LC-3CP-MD Mag-Drive Centrifugal Pump 115V is an American centrifugal magnetic drive pump, which eliminates the need for a shaft seal. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz, with performance differences between the hertz options.
This pump may be used submerged or not submerged, and can handle fresh water, salt water, and mild chemicals. Serviceable with a screwdriver. The “LC” is hermetically encapsulated and liquid cooled which allows the pump to be run fully submerged or in open air for complete moisture protection. Direct Replacement for Dometic PML500 Pump 115V, Part Number: 225500005, 336183.
Motors are available in different electrical configurations such as 115 Volt 50/60 Hz, or 230 Volt 50/60 Hz, 1 phase. The motors are U.L. listed and rated as continuous duty. Models have a 6 foot (1.8 m) cord.
March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration
The March LC-3CP-MD is a direct replacement for the PML500 pump (part number 336183). This Dometic pump provides a steady flow of cooling water throughout Dometic marine A/C systems.
| March Part Number | LC-3CP-MD |
| Max Flow | 8.5 GPM / 32.2 LPM |
| Max Head | 19 FT / 5.8 M |
| Max Internal Pressure | 25 psi / 172 kPa |
| Max Liquid Temperature | 130 °F / 54 °C |
| Power | 0.05 HP / 0.037 KW |
| Voltage | 115V 50/60Hz |
| Inlet | 3/4″FPT – 1/2” MPT |
| Outlet | 1/2″MPT |
| Submersible | Yes |
| Dimensions (inches) | 4.87 x 4.75 x 7.38 |
| Packed Weight (lbs) | 7.9 |
| Applications | Marine air conditioning and fountains |
| Weight | 4.5 kg |
|---|---|
| Dimensions | 42 × 43 × 50 cm |
Climax Marine Services specializes in supply of different Brands and types of Marine Sea Water Pump that are used in various applications. We carry a wide range of Sea water pumps such as March Pump,K2, Scot Pump, Oberdorfer, Calpeda etc. We have also Fresh/Chill water pumps, Condensation Pump, Macerator Pump & Pump Mechanical Seal. Find your next Marine Sea Water Pump online with us and delivered to your door step in Dubai, Oman, Qatar, Bahrain, Saudia Arabia and Kuwait.
| UNIT | 60 HZ | ||
| SYSTEM | US | METRIC | |
| MAX FLOW | 8.5 GPM | 32.2 LPM | |
| MAX HEAD | 19 FT | 5.8 M | |
| POWER | 0.05 HP | 0.037 KW |
| UNIT | 50 HZ | ||
| SYSTEM | US | METRIC | |
| MAX FLOW | 8.2 GPM | 31 LPM | |
| MAX HEAD | 14.1 FT | 4.3 M | |
| POWER | 0.05 HP | 0.037 KW |
