Description

One small sensor, three big features

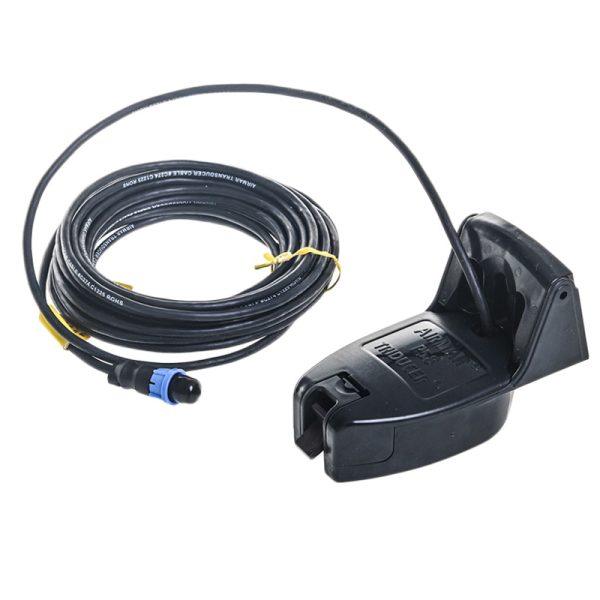

The Airmar P58 Transom Mount Transducer offers dual-frequency depth, speed, and temperature functionality at an extremely attractive price. The 50 kHz and 200 kHz transom-mount design incorporates innovative features such as a recessed water flow channel for improved paddlewheel accuracy. Few parts make the installation simple, and its compact size is favourable to owners of small boats.

Airmar P58 Transom Mount Transducer Features:

• Recommended for small inboard/outboard boats
• Square four-blade paddlewheel improves linearity
• Accommodates transom angles between 2° to 22°
• Measures Depth/Speed/Temp
• Frequency: 50/200 kHz
• 600 W RMS
• Mid-performance
• Weight: .5kg (1.1lb)
• Cable length: 8m (approx)
• Plastic

Airmar P58 Transom Mount Transducer Specifications:

• Frequency: 50/200 kHz
• Cone: 50 kHz—45°, 200 kHz—11°
• RMS Power: 600
• Maximum Depth Range:
  50 kHz—235 m to 353 m (800’ to 1,200’)
  200 kHz—118 m to 206 m (400’ to 700’)

Airmar P58 Transom Mount Transducer Connector Specifications:

Hull Material Recommendations:

• Fibreglass – Plastic, Bronze or Stainless Steel Housing
• Metal – Stainless Steel Housing
• Wood – Bronze or Stainless Steel Housing
