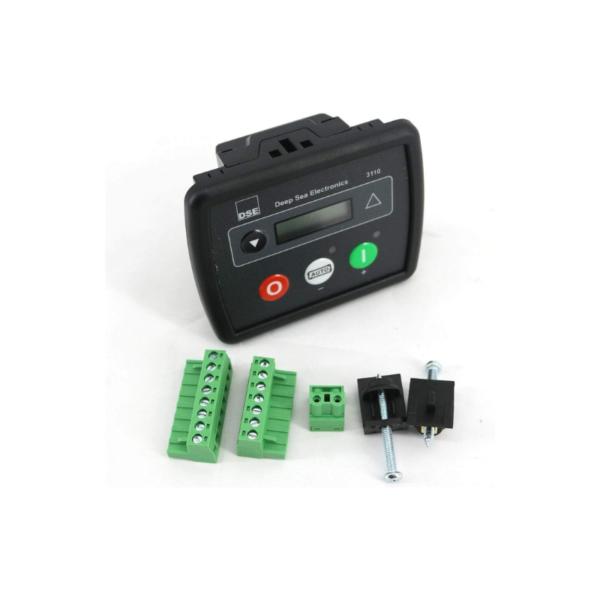

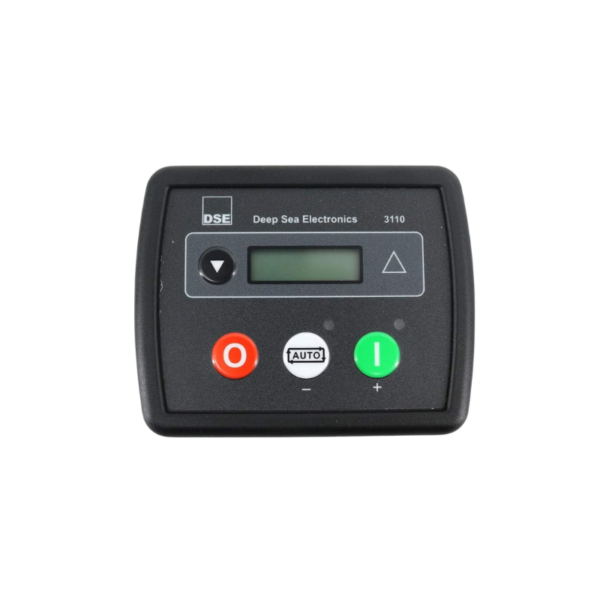

Deep Sea DSE3110 Generator Controller – DSE3110 (MPU) Genset Controller

The Deep Sea DSE3110 Generator Controller is a compact and reliable genset control module designed for single-generator applications. The DSE3110 can operate in both manual and automatic start modes, making it suitable for a wide range of diesel generator sets. This original DSE3110 (MPU version) provides essential engine monitoring, generator protection and operational control in a compact panel-mounted design.

Designed to work with both electronic and non-electronic engines, the DSE3110 generator controller provides clear monitoring of important generator parameters. Its back-lit LCD display allows operators to easily view engine status, operating conditions, warnings and shutdown information.

Key Features of the DSE3110 Generator Controller

The Deep Sea DSE3110 combines essential generator control and monitoring functions in a compact module. Key features include:

• Manual and automatic generator start functionality
• Suitable for single generating set applications
• Compatible with electronic and non-electronic engines
• Back-lit LCD display for clear status monitoring
• Engine speed monitoring
• Generator frequency monitoring
• Generator voltage monitoring
• Engine run-hour display
• Warning and shutdown indication
• Six digital inputs
• Four configurable outputs
• Front-panel configuration capability
• PC configuration using DSE Configuration Suite software
• Compact panel-mounted design
• Suitable for diesel generator and genset control applications

Advanced Generator Monitoring and Protection

The DSE3110 genset controller continuously monitors important generator and engine operating parameters. The LCD display provides operators with useful information including engine speed, generator frequency, voltage and accumulated running hours.

The controller also provides warning and shutdown status indications, helping operators identify abnormal operating conditions and respond appropriately. This makes the DSE3110 a practical choice for generator control panels where reliable monitoring and straightforward operation are required.

Manual and Automatic Start Control

The DSE3110 can be configured for manual or automatic generator starting, providing flexibility for different generator applications. Its compact design allows it to be integrated into generator control panels where space is limited.

The module is designed for single-generator applications and provides the essential control functions required for monitoring and operating a diesel generating set.

Inputs and Outputs

The Deep Sea DSE3110 includes six digital inputs and four outputs, providing configuration flexibility for generator control applications. Depending on the installation requirements, the module can be programmed through the front panel or using DSE Configuration Suite PC software.

This flexibility allows the controller to be configured according to the requirements of the generator system and connected equipment.

Specifications

Compact Design for Generator Control Panels

With an overall size of 98 mm × 79 mm × 40 mm, the DSE3110 is designed for compact installation. The required panel cutout is 80 mm × 68 mm, while the maximum supported panel thickness is 8.0 mm.

Its compact dimensions make the DSE3110 suitable for generator control panels where efficient use of available panel space is important.

Applications

The Deep Sea DSE3110 generator controller can be used in various diesel generator and genset control applications, including:

• Diesel generator control panels
• Standby generator systems
• Single-generator installations
• Industrial generator sets
• Commercial backup power systems
• Generator monitoring systems
• Engine control and protection applications

Why Choose the Deep Sea DSE3110?

The DSE3110 provides a practical combination of generator control, engine monitoring and protection functions in a compact module. Its manual and automatic operating modes, LCD monitoring, configurable inputs and outputs, and compatibility with different engine types make it a versatile solution for single-generator applications.

If you are looking for an original Deep Sea DSE3110 MPU generator controller, this module is designed to provide dependable control and monitoring for compatible diesel generator systems.

For product availability, pricing, technical specifications or compatibility confirmation, contact us for assistance.
