Calpeda NM 40/16C/C 2.2 kW Centrifugal Water Pump – 230/400V 2900 RPM

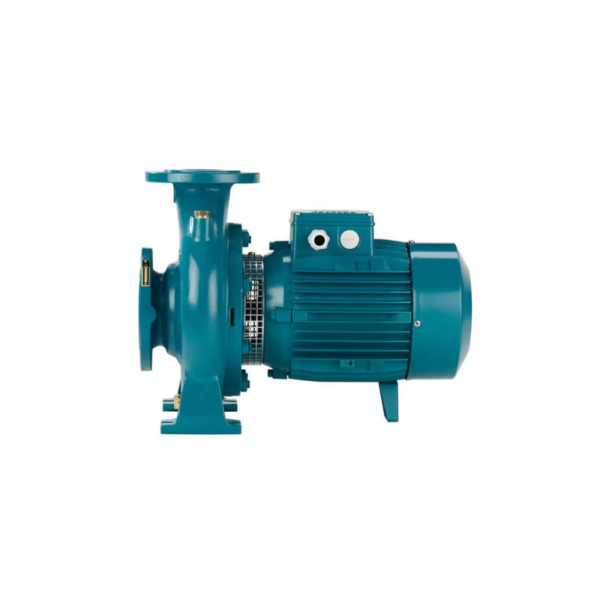

Calpeda NM 40/16C/C 2.2 kW Centrifugal Water Pump

The Calpeda NM 40/16C/C is a heavy-duty horizontal centrifugal water pump designed for reliable water supply, heating, air conditioning, cooling, circulation, irrigation, fire-fighting, and civil and industrial applications. With a 2.20 kW motor, 2900 RPM operating speed, and 3-phase 230/400V electrical configuration, this Calpeda centrifugal pump provides dependable performance for demanding water transfer and circulation systems.

The Calpeda NM 40/16C/C centrifugal pump features a robust monoblock construction with the electric motor directly connected to the pump. The pump casing is designed with axial suction and radial delivery positioned on top, while the main dimensions and hydraulic performance follow EN 733 standards.

Built for pumping clean liquids without abrasive particles, the pump can handle liquids with a solids content of up to 0.2%, provided the liquid is compatible with the pump’s construction materials. Its cast iron pump casing and cast iron impeller provide a durable solution for continuous water pumping applications.

With a maximum flow rate of 650 L/min (39 m³/h) and a maximum head of 23 metres, the Calpeda NM 40/16C/C is suitable for systems requiring reliable water circulation and transfer capacity.

Key Features of Calpeda NM 40/16C/C

• Genuine Calpeda NM 40/16C/C centrifugal pump
• 2.20 kW power output
• 3-phase 230/400V electrical configuration
• Approx. 2900 RPM operating speed
• Maximum flow rate up to 650 L/min
• Maximum head up to 23 m
• Heavy-duty monoblock construction
• Horizontal pump design
• Cast iron pump casing
• Cast iron impeller
• Axial suction and radial top delivery
• Flanged connections according to PN 10 / EN 1092-2
• Maximum suction lift up to 7 m
• Maximum liquid temperature up to 90°C
• IP54 motor protection
• Designed for continuous water circulation and transfer
• Suitable for clean liquids with solids content up to 0.2%

Calpeda NM 40/16C/C Pump Performance

The Calpeda NM 40/16C/C water pump provides a maximum flow rate of approximately 650 litres per minute, equivalent to around 39 m³/h, with a maximum head of approximately 23 metres.

The actual flow and head achieved will depend on the operating point and the hydraulic characteristics of the complete installation.

Performance Highlights

• Maximum Flow: 650 L/min
• Maximum Flow: Approximately 39 m³/h
• Maximum Head: 23 m
• Motor Power: 2.20 kW
• Speed: Approx. 2900 RPM
• Maximum Suction Lift: 7 m

Technical Specifications

Applications

The Calpeda NM 40/16C/C centrifugal water pump is suitable for a wide range of clean-water pumping applications, including:

• Water supply systems
• Building water circulation
• Heating systems
• Air conditioning systems
• Chilled water circulation
• Cooling plants
• Industrial water circulation
• Civil engineering applications
• Industrial water transfer
• Fire-fighting systems
• Agricultural irrigation
• Commercial water systems
• Compatible marine and yacht water circulation applications

Calpeda NM 40/16C/C for HVAC and Cooling Systems

The Calpeda NM 40/16C/C is suitable for water circulation in heating, air conditioning, cooling, and HVAC systems. Its 2.20 kW motor and high flow capacity make it suitable for larger circulation and water transfer requirements.

For HVAC and chilled-water applications, verify the required flow rate, pump head, liquid temperature, connection dimensions, and system pressure before selecting the pump.

Construction and Design

The Calpeda NM 40/16C/C uses a horizontal monoblock centrifugal pump configuration. The electric motor is directly connected to the pump, providing a compact and practical installation.

The pump casing features axial suction and radial delivery on top, with dimensions and performance designed according to EN 733.

The pump casing and lantern bracket are manufactured from cast iron, while the impeller is also made from cast iron.

Flanged connections are designed according to PN 10 and EN 1092-2.

Motor Specifications

The Calpeda NM 40/16C/C is equipped with a three-phase motor designed for reliable continuous operation.

• Power: 2.20 kW
• Voltage: 230/400V, 3-phase
• Speed: Approximately 2900 RPM
• Maximum current: 5.30 A
• Motor protection: IP54
• Automatic thermal protection: No
• Speed control: No
• Capacitor: No

Operating Conditions

The Calpeda NM 40/16C/C is designed for clean liquids without abrasive particles that are non-aggressive to the pump materials.

Operating conditions include:

• Maximum liquid temperature: 90°C
• Maximum suction lift: 7 m
• Maximum solids content: 0.2%
• Maximum working conditions should be checked against the manufacturer’s pump curve and installation requirements.
• Designed for continuous-duty operation.

Why Choose Calpeda NM 40/16C/C?

The Calpeda NM 40/16C/C 2.2 kW centrifugal pump combines robust construction with high water flow capacity for demanding pumping applications. Its cast iron construction, mono block design, 3-phase motor, and flanged connections make it suitable for commercial, industrial, HVAC, irrigation, and other water circulation systems.

With a maximum flow of 650 L/min and maximum head of 23 m, this pump is a practical solution for installations requiring dependable water transfer and circulation.

If you are searching for a Calpeda 2.2 kW centrifugal pump, 3-phase water pump, industrial water pump, HVAC circulation pump, or high-flow centrifugal water pump, the NM 40/16C/C is designed for a wide range of compatible applications.

Buy Calpeda NM 40/16C/C in Dubai, UAE

Climax Marine Services supplies Calpeda pumps, centrifugal water pumps, industrial pumps, HVAC circulation pumps, marine pumps, and water system components in Dubai and across the UAE.

Contact Climax Marine Services for the Calpeda NM 40/16C/C 2.2 kW centrifugal water pump, availability, pricing, technical assistance, and application compatibility.
