AED 1,300.00
SMX II AB NEW OEM Keypad Display (Brand New). Fits Cruisair / Dometic SMX II AB keypad display. Completely new designed and manufactured board. Fully compatible with original Cruisair/Dometic power (logic) boards. For Self-Contained and Split Gas Units.
Part Number: SMXII AB / ASY-423-X00

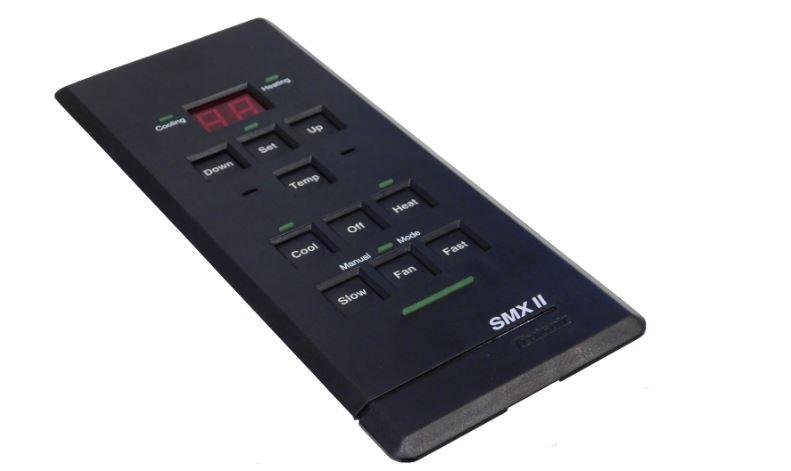

SMXII-AB Control Display
Cruisair SMXII-AB Control Display – also called SMXIIab, SMX II ab, has a noncorrosive ABS cover and soft – touch membrane switches. (Cover Sold Separately)
Works with the Cruisair SMX II Circuit boards.
The large, easy-to-read digital display shows setpoint or cabin temperature and also is used to give information on operating parameters and fault code warnings.
The user can select cooling only, heating only, or automatic changeover between cooling and heating.
Fan speed is automatically controlled, or can be manually set.
The system’s nonvolatile memory retains all user-programmed settings, even when the power is switched off.
The dehumidification program ensures, even when no one is aboard, the boat stays dry, eliminating mold, mildew and odor.
| Weight | 0.453592 kg |
|---|---|
| Brand | Cruisair |
Climax Marine supplies genuine Cruisair parts for boats and yachts across the UAE and GCC. We carry OEM replacement displays, control boards and sensors for chillers, self-contained units, split systems and air handlers.
Our range includes the SMX IR, SMXht, SMX-Qht and SMXII-AB control displays, Q Logic and Power/Logic control boards, air temperature sensors and 6 pin display cables. We also supply 12000 BTU condensing units and can source other spares on request.
Our technicians can help with fault finding, installation and setup on board. With over 40 years in marine air conditioning, our team will help you find the right Cruisair replacement for your unit. Contact Climax Marine or visit one of our showrooms for advice and fast delivery across the UAE and GCC.
SMXII-AB Replacement Control Display/Keypad
|
Important
The SMXII-AB display has a noncorrosive ABS cover and soft-touch membrane switches. All keys are clearly labeled, making operation simple. The large, easy-to-read digital display shows set-point or cabin temperature and also is used to give information on operating parameters and fault code warnings. Small LEDs are used to indicate system status. For normal operation, it is only necessary to turn the system on and select the desired set-point. The user can select cooling only, heating only, or automatic changeover between cooling and heating. Fan speed is automatically controlled, or can be manually set. Factory settings may be changed, with user-programmable commands, permitting the boat-owner to fine-tune the system for personal preferences. Programming modes are accessed by pressing special combinations of keys. Programmable features Include AC line voltage calibration, temperature calibration, compressor restart time delay, continuous or intermittent fan operation, low and high fan speed adjustment, compressor response differential, Fahrenheit or Celsius temperature display The system’s nonvolatile memory retains all user-programmed settings, even when the power is switched off. |
