Description

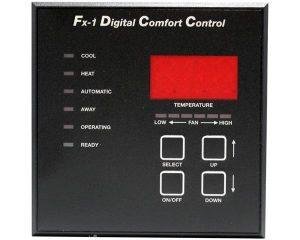

FX-1 Control Display

The FX-1 Control is designed for use with all direct expansion, reverse cycle air conditioning systems. FX-1 has a universal power supply that operates on 115, 230, 50 or 60 Hz AC power

The FX-1 Control Display is long-standing cabin control standard for both self-contained & split DX systems and for CW air handlers.

• Requires FX-1 or FX-2 Power supply/Control Board ASY-370 or ASY-360 variants

Standard Features

• User friendly 4 button display panel requires no manual for basic operation.
• Five volt logic and micro controller located in the display.
• 3-digit 7-segment display panel indicates °Fahrenheit or °Celsius.
• Room temperature sensor integral in the display panel.
• Automatic fan speed reduction as set point is approached.
• Six [6] programmable manual fan speeds.
• 17 programmable parameters for custom installations.
• AC voltmeter to protect valuable electrical components.
• High and low Freon pressure sensor inputs.
• Away Mode for controlling relative humidity.
• De-Icing cycle to prevent evaporator coil icing.
• Programmable multiple compressor staging delays.
• Universal AC power supply. Nonvolatile memory retains settings without batteries.
• Programmable display brightness control for night use.
• Easy-to-read and bright 7-segment LED display
• Clear, individual mode, fault and fan speed indicator LEDs
• Simple 4-button interface for operation and programming
• Built-in inside temperature sensor
• 8-pin RJ-45 Display Interface
• Available in black or white
