Description

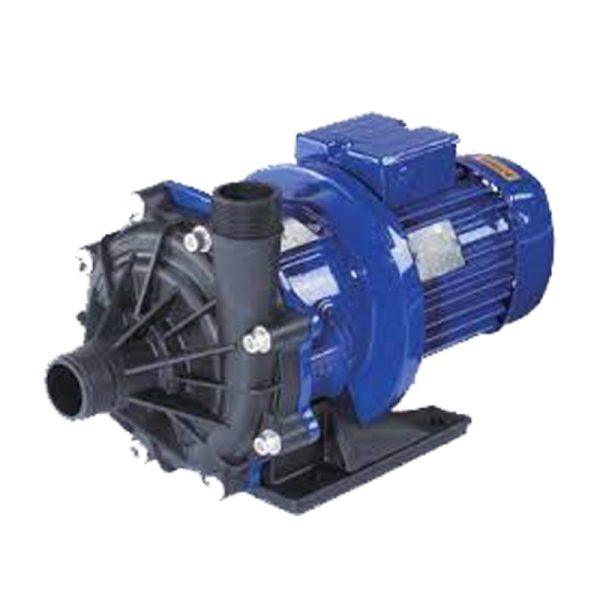

IWAKI MAGNET PUMP MX-401CV5F

The IWAKI MAGNET PUMP MX‑401CV5F is a premium magnetic-drive centrifugal pump tailored for harsh chemical, marine, and refrigeration environments. It blends advanced engineering with robust material selection to deliver exceptional performance and reliability, even under demanding conditions.

Superior Construction & Chemical Compatibility

The MX‑401CV5F features glass-filled polypropylene wetted components coupled with a ceramic shaft and high-density carbon bearings, offering strong resistance across a wide range of chemicalsClimax Marine Services. For tougher applications, the pump can be upgraded with carbon fiber reinforced ETFE fluoropolymer, alumina ceramic, and SiC parts, ensuring compatibility with nearly all industrial chemicalsClimax Marine Services.

Exceptional Durability under Abnormal Conditions

Engineered to withstand the rigors of industrial use, this pump incorporates IWAKI’s patented Non‑Contact System and Self‑Radiation bearing structure. These innovations make it highly tolerant to challenging operational scenarios like short-term dry running and cavitation, significantly enhancing longevity and reducing downtimeClimax Marine Servicesiwaki-pumps.com.au.

Flexible Installation & Connection Options

Standard Australian versions come fitted with flanged connections, which can be easily removed if threaded connections are preferred—adding versatility for different piping configurationsClimax Marine Services.

Impressive Performance & Industrial Motors

The MX series, including the MX‑401CV5F, can handle transfer capacities up to 500 L/min and reach maximum heads of 28 meters—making it suitable for high-demand situationsClimax Marine Services. Additionally, each unit is powered by IP66-rated industrial motors, offering robust outdoor durability and resistance to harsh environmental exposureClimax Marine Services.

Designed for Efficiency & Easy Maintenance

As with all MX-series pumps, the split-volute casing design forms a vortex chamber that minimizes internal recirculation and enhances hydraulic efficiencyiwakipumps.jpIwaki. The self-radiating structure, which circulates pumped fluid through heat dispersion channels around bearings, prevents overheating and premature weariwakipumps.jpIwaki. The non-contact magnetic coupling ensures there’s no mechanical wear from shaft seals, keeping maintenance simple and minimal.

Applications & Suitability

The MX‑401CV5F is especially well-suited for:

• Marine air conditioning and freshwater systems

• Chemical transfer, recirculation, and processing

• Industrial coating, etching, spraying, or plating

• Chiller systems and process cooling

This versatile pump is a go-to solution wherever leak-free, chemical-resistant pumping with superior durability is required.
