Cruisair Control Board

Cruisair Control Board

AED 1,480.00

Availability: 2 in stock Categories ,
Add to Wishlist
Add to Wishlist

The A-288D circuit board/controller fits Dometic / Cruisair displays SMXht or SMXirb with technology SMXII, for SMX II controllers. Works with all SMX-II 6-pin standard control displays including the Micro-Air EasyTouch 589 (Dometic Smart Touch replacement). This control board is a redesigned, newly manufactured, footprint-compatible replacement that operates identically.

Part Number: ASY-509-X01
Fits Dometic / Cruisair Part Numbers: 722300288 / 42404

Description

Replacement Cruisair Control board
A redesigned, newly manufactured, replacement control board. Drop-in compatible with existing electrical boxes.

The A-288D Control Board is part of a legacy DX & TW cabin control system sold from the late 1990s through the present and was recently discontinued by the OEM.

This control board is a redesigned, newly manufactured, footprint-compatible replacement that operates identically. It preserves the following special legacy features only available on this particular control board.

A-288D circuit board / controller is compatible with Dometic / Cruisair displays SMXht or SMXir with technology SMX II, for SMX II controllers.

This Board fits Dometic / Cruisair part number: 722300288 / 42404

MPN: 50-032201-E

Additional information

Weight 0.578655 kg

Brand

cruisair

Climax Marine supplies genuine Cruisair parts for boats and yachts across the UAE and GCC. We carry OEM replacement displays, control boards and sensors for chillers, self-contained units, split systems and air handlers.

Our range includes the SMX IR, SMXht, SMX-Qht and SMXII-AB control displays, Q Logic and Power/Logic control boards, air temperature sensors and 6 pin display cables. We also supply 12000 BTU condensing units and can source other spares on request.

Our technicians can help with fault finding, installation and setup on board. With over 40 years in marine air conditioning, our team will help you find the right Cruisair replacement for your unit. Contact Climax Marine or visit one of our showrooms for advice and fast delivery across the UAE and GCC.

Dometic

Climax Marine supplies genuine Dometic marine air conditioning parts for boats and yachts across the UAE and GCC. As part of the same group, Cruisair and Marine Air spares are also covered, so you can find displays and boards for most systems in one place.

Our range includes DDC and Q Logic control boards, Cap Touch, Personal Climate, Top Climate and Passport I/O displays, SMX series controls and digital thermostats. We also supply Eskimo Ice fishbox ice systems and can source other spares on request.

Our technicians can help with fault finding, installation and setup on board. With over 40 years in marine air conditioning, our team can help you find the right Dometic replacement for your unit. Contact Climax Marine or visit one of our showrooms for advice and fast delivery across the UAE and GCC.

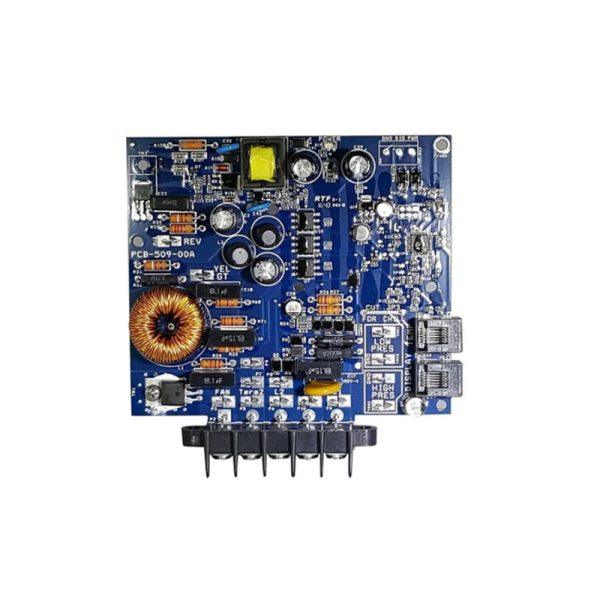

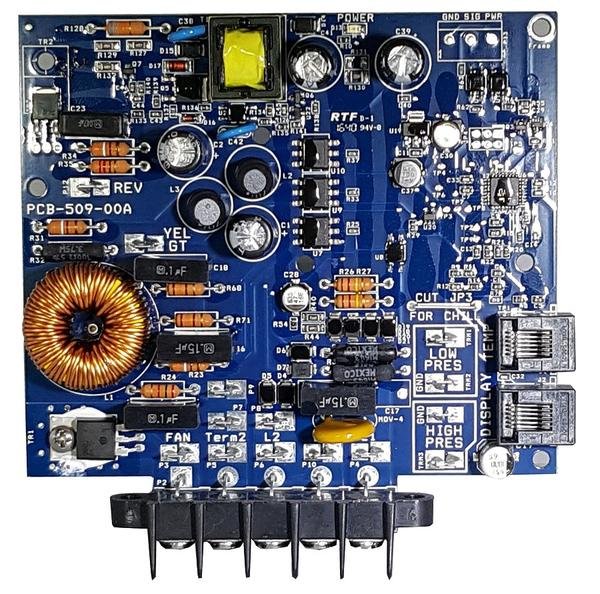

The A-288D control board was used by Cruisair from the late 1990’s until about 2017. It is the only Cruisair board with a solder connected five screw terminal block. Spade connectors right behind the terminal block were typically used to make most of the component connections. The board features two six pin connectors, one for the display and one for the temperature sensor. The board is 5.0” x 5.2” [12.7cm x 13.2cm].

Although long lived, these boards had several known weaknesses and most times replacing the board is part of the troubleshooting process.

This board replaces the legacy Cruisair A-288C, A-288T, and SMXII HV boards. Replaces Cruisair part number 42404, and Dometic part number 722300288.

  • Completely new designed and manufactured board.
  • Footprint and connection compatible with the original Dometic / Cruisair SMX II A-288 board.
  • Several design improvements to the original board that enhances reliability and longevity.
  • Works with all SMX II 6-pin standard control displays including the Micro-Air EasyTouch 589 (Dometic Smart Touch replacement).
  • Replacement OEM A/C controls.
  • Improved Micro-Air marine redesigns
  • Better than the original
  • Identical operation
  • Newly manufactured
  • Footprint-compatible
  • Legacy OEM network capability
  • Aux Heat in DX and Coach applications
  • Outside Air Temp Sensor support
  • Virtual Pump Relay operation via networking
  • 2-speed fan output support
  • Compatibility with all of the original legacy control displays, 6-pin RJ-12 display, and network interfaces.
